安全断电不失磁
省电工作过程不用电
耐用磁力经久不衰
回报免维护高回报
简便简单的操作系统
高效快速装卸料
| 产品型号 | 系列代号 | 起重能力（kg） | 钢板长度（毫米） | 钢板宽度（毫米） | 钢板厚度（毫米） | 自重（kg） | ||
|---|---|---|---|---|---|---|---|---|
| 最短 | 最长 | 最窄 | 最宽 | 最薄 | ||||
| HM1-06-010 | HM1-010A0104-1 | 1000 | 400 | 6000 | 60 | 400 | 4 | 420 |
| HM1-06-012 | HM1-012A0104-1 | 1200 | 200 | 6000 | 250 | 1500 | 8 | 450 |
| HM1-06-030 | HM1-030A0203-1 | 3000 | 500 | 6000 | 500 | 3200 | 5 | 900 |
| HM1-06-060 | HM1-060A0203-1 | 6000 | 500 | 6000 | 500 | 3200 | 5 | 1000 |
| HM1-06-090 | HM1-090A0203-1 | 9000 | 500 | 6000 | 500 | 3200 | 5 | 1100 |
| HM1-06-240 | HM1-240A0203-1 | 24000 | 500 | 6000 | 580 | 3200 | 8 | 1600 |
| HM1-09-050 | HM1-050A0204-1 | 5000 | 2350 | 9000 | 500 | 3200 | 5 | 1200 |
| HM1-09-080 | HM1-080A0204-1 | 8000 | 2350 | 9000 | 500 | 3200 | 5 | 1300 |
| HM1-09-090 | HM1-090A0204-1 | 9000 | 2350 | 9000 | 500 | 3200 | 5 | 1400 |
| HM1-09-120 | HM1-120A0204-1 | 12000 | 2350 | 9000 | 500 | 3200 | 5 | 1500 |
| HM1-09-160 | HM1-160A0204-1 | 16000 | 2350 | 9000 | 600 | 3200 | 5 | 1600 |
| HM1-12-019 | HM1-019A0106-1 | 1900 | 2100 | 12000 | 250 | 1500 | 5 | 740 |
| HM1-12-050 | HM1-050A0205-1 | 5000 | 5000 | 12000 | 500 | 3500 | 5 | 1600 |
| HM1-12-080 | HM1-080A0205-1 | 8000 | 5000 | 12000 | 500 | 3500 | 5 | 1800 |
| HM1-12-100 | HM1-100A0205-1 | 10000 | 5000 | 12000 | 500 | 3500 | 5 | 2000 |
| HM1-12-150 | HM1-150A0205-1 | 15000 | 5000 | 12000 | 500 | 3500 | 5 | 2200 |
| HM1-12-200 | HM1-200A0205-1 | 20000 | 5000 | 12000 | 600 | 3500 | 5 | 2400 |
| HM1-12-240 | HM1-240A0206-1 | 24000 | 5000 | 12000 | 600 | 3500 | 5 | 2800 |
| HM1-15-025 | HM1-025A0108-1 | 2500 | 4000 | 15000 | 200 | 800 | 6 | 950 |
| HM1-16-100 | HM1-100A0206-1 | 10000 | 2800 | 16000 | 500 | 3500 | 5 | 2600 |
| HM1-16-140 | HM1-140A0206-1 | 14000 | 2800 | 16000 | 500 | 3500 | 5 | 2900 |
| HM1-16-200 | HM1-200A0206-1 | 20000 | 2800 | 16000 | 600 | 3500 | 5 | 3100 |
| HM1-16-240 | HM1-240A0206-1 | 24000 | 2800 | 16000 | 650 | 3500 | 5 | 3400 |
| HM1-06-005 | HM1-005A0104-1 | 480 | 400 | 6000 | 60 | 400 | 8 | 430 |
“以上仅为典型型号，我们可以根据客户需求，提供个性化解决方案。”

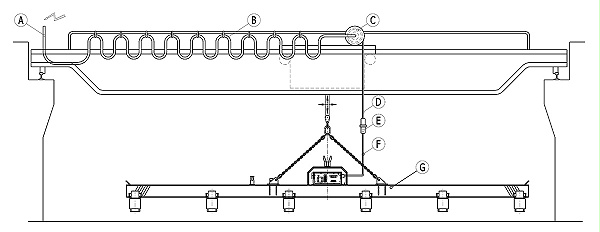

A:输入电源 B:行车滑线 C:电缆卷筒 D:卷筒升降电缆 E:重载连接器 F:电永磁控制系统电源进线 G:横梁
钢结构厂

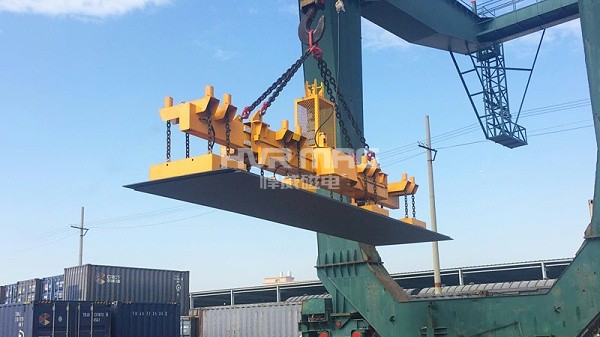

港口钢材装卸
轨道交通
汽车制造
冶金行业
